Orgapack Ergonomic Pallet Strapping
Description

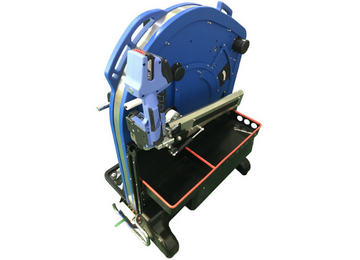

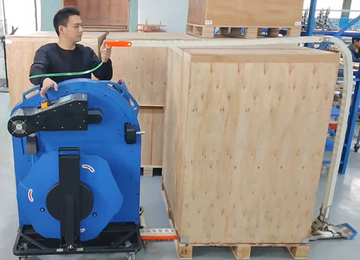

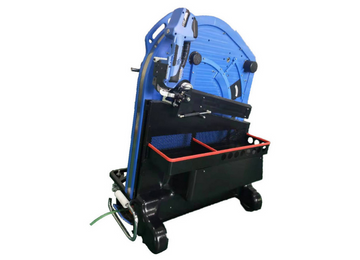

This portable pallet strapping system sits on wheels so can be moved to the pallet. It features a powered chain lance that feeds the strapping under, around and over the pallet bringing it back to the operator who then frictions seals the strapping using a battery powered strapping tool that is part of the Portable Strapping System. Great for addressing Occupational Health & Safety (OH & S) issues as there is no bending, stretching or pulling required and is operated by one person.

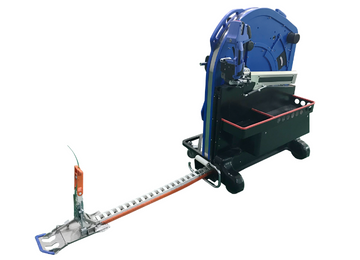

The powered lance is controlled using a joystick (forwards and backwards) and can be used on pallets up to 2 meters wide and up to 3 meters high.
Other features include a touch screen control panel, and the battery powered strapping tool is rechargable. No metal seals or buckles are required.
Features
• One man handling – pallets are strapped from only one side
• Firm quality - hard and durable / automatic strapping / high efficiency / cost-saving / ergonomic
• Strapping without bending – comfortable while standing in ideal working height

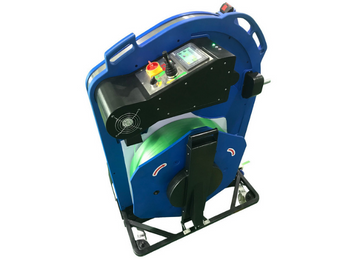

• Elegant operation via touchscreen and joystick
• Comfortable handling with ergonomically shaped handles
• Auto strapping, feeding, and sealing
• 3 times higher efficiency
• The pallet width is adjusted not mechanically but by touch screen
• Applicable for object width below 2000mm, height below 3000mm
• Number of strapping 400 to 600 per charge
Specification
| Dimensions | 950.L x 750.W x 1250.H mm |
| Weight | 100 kgs |
| Chain length | 9300 mm |
| Pallet size | width: up to 2000 mm, height: up to 3000 mm |
| Strap type | PET / PP |
| Strap spec PP strapping band | roll core diameter 200mm, roll core height 180 mm |
| Strap spec PET strapping band | roll core diameter 406mm, roll core height 150 mm |
| Strap thickness | 0.6-1.3 mm |
| Strap width | 12-19 mm |
| Duty cycles | around 600 cycles with full battery |
| Horizontal strap speed | 40 m / min |
| Vertical strap speed | 60 m / min |
| Pallet clearance height | 75 mm |
| Pallet min. width | 200 mm |
| Charging time | 3.5 hours |
