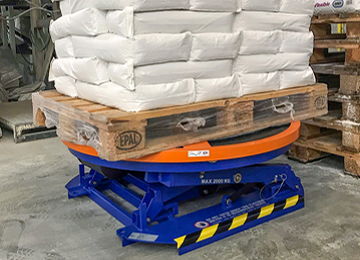

Pallet Leveler

project-slider-image
project-slider-image

Description

Pallet leveller is a highly reliable automatic load leveller that provides a practical approach to faster, easier and safer loading or unloading of pallets. The Pallet Leveller is adjustable by regulating the pneumatic charge. Once set the Pallet Leveller automatically maintains the top of the load to the proper and most ideal elevation to eliminate the repetitive motion of bending, reaching and twisting - the major cause of lower back disorders. All of its components are contained within the diameter of the turntable ring. There are no protrusions, projections or obstructions, so reach-over zones are eliminated.

Features

  • Heavy-duty reinforced airbag automatically adjusts as boxes are added or removed from pallets, keeping loads at a convenient, comfortable working height
  • Low-friction turntable spins easily for nearside loading and unloading
  • Extremely stable base - no lagging required
  • Ideal for use with non-uniform loads or loads of varying weights
  • Portable: requires no electrical power. Simply inflate the airbag with shop air or a portable compressor and use it anywhere
  • Integral fork channels for easy relocation
  • The top layer is maintained in the 750 to 1000 mm recommended ideal work height envelope

Specification

    Capacity 150 - 2000 KG
    Lift stroke
    464 mm
    Lowest height
    241 mm
    Length
    1110 mm
    Width
    1110 mm
    Total height
    705 mm
    Turntable
    1100 mm
    Weight
    220 KG incl. pack.
