5 - Stand Alone Pallet

project-slider-image
project-slider-image
project-slider-image

Description

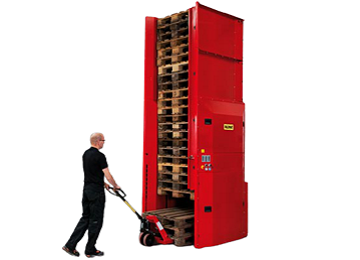

The pallet magazine/ pallet dispenser "5" which is a part of our Stand Alone line, is ideal for stacking and destacking multiple pallets simultaneously. You insert or remove the 1-5 pallets at a time using a hand pallet truck, electric stacker or forklift truck. All pallet handling is carried out at floor level. It should be activated manually each time to perform a function; with just a tap on the reset- and next the start button, it performs the stacking or destacking function. It figures out itself if it should stack or destack. Handles 15 to 25 pallets.

Features

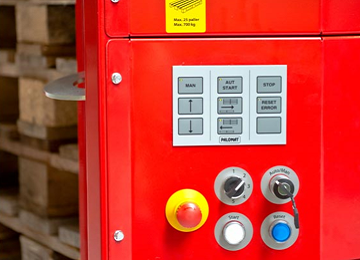

  • Signal tower incl. maximum indicator
  • Truck protection
  • Stopblocks
  • Switch disconnector

Specification

    ModelCapacity 500 KG
    Capacity 700 KG
    Energy
    220-240VAC / 50 Hz
    220-240VAC / 50 Hz
    Standby Consumption
    23 W23 W
    Consumption During Operation
    700 W (at max. load of 500 kg)
    700 W (at max. load of 700 kg)
    Noise Level
    70 dB(A)
    70 dB(A)
    Max. Fuse
    16A
    16A D01
    Steering
    Siemens S7-1200
    Siemens S7-1200
