Greenline - Stand Alone Pallet
Description

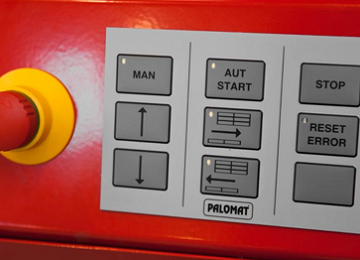

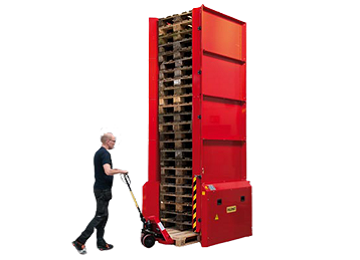

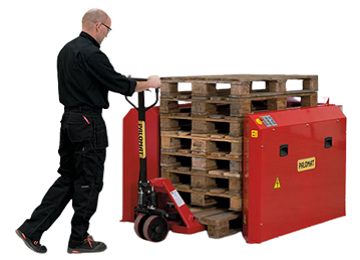

Greenline is a part of Stand Alone line which is for automatic pallet stacking and destacking using the touch-panel. The user inserts or removes the pallets using a stacking truck or a fork lift truck. All pallet handling is carried out at floor level. The Greenline detects the pallets via photo sensors and automatically stacked or destacked one by one. When selecting destacking, a stack of no more than 15 or 25 pallets will be inserted in the Greenline, after which the pallets are automatically destacked one by one. When selecting stacking, the pallets are inserted one by one, after which the pallets are automatically stacked to no more than 15 or 25 pallets. The entire stack can subsequently be removed.
Features
- Safety frame for 15 pallets
- Maximum indicator
- Truck protection
- Stopblocks
- Switch disconnector
- Pallet handling in cold environments down to –25°C
Specification
| Model | Capacity 500 KG | Capacity 700 KG |
| Energy | 220-240VAC / 50 Hz | 220-240VAC / 50 Hz |
| Standby Consumption | 23 W | 23 W |
| Consumption During Operation | 550 W (at max. load of 500 kg) | 600 W (at max. load of 700 kg) |
| Noise Level | 70 dB(A) | 70 dB(A) |
| Max. Fuse | 16A D01 | 16A D01 |
| Steering | Siemens S7-1200 | Siemens S7-1200 |
