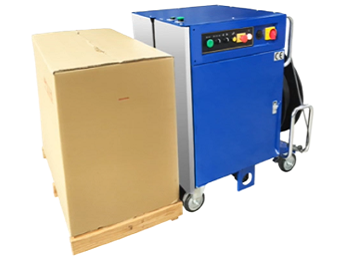

S-72YO Move Track
Description
The S-72YO is a mobile pallet strapping machine that is equipped with a portable track. This portable track is specially constructed for pallet strapping. This machine is compatible with Polypropylene and Polyester straps. The S-72YO is integrated with a low sealing head that measure 550mm.
Features
• Proximity cam switch
• Auxiliary feeding device
• Low sealing head (550mm)
• Weld cooling time adjustable
• Mobile track for pallet strapping
• PP/PET switch: to change the setting by one switch
• Digital regulator in PCB which LED shows I/O status
Specification
| Strap Width |
9, 12, 15 mm (specified) |
| Tension Range | 15~70 kgs |
| Motor | AC |
| Sealing Method | Heating element |
| Power Supply | 230V, 50/60Hz, 1PH |
| Power Consumption | 0.95 kw |
| Layout Dimension | 1005.L x 765.W x 1120.H mm |
