S-72YOF Fixed Track
Description

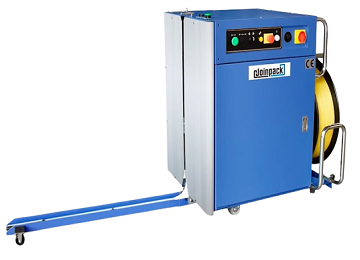

The S-72YOF is a mobile side seal strapping machine for pallet with a fixed track.

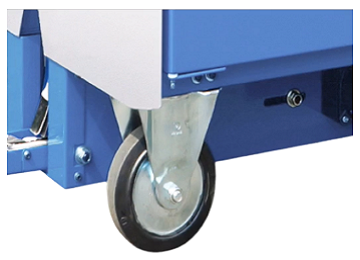

Ideal design for packages on pallet, plug in and workable for everywhere, movable with casters.
Depends on your request, this machine is compatible with Polypropylene and Polyester straps.
Features
• Proximity cam switch
• Auxiliary feeding device
• Low sealing head (550mm)
• Weld cooling time adjustable
• Fixed track for pallet strapping
• PP/PET switch: to change the setting by one switch
• Digital regulator in PCB which LED shows I/O status
Specification
| Strap Width |
9, 12, 15 mm (specified) |
| Tension Range | 15~70 kgs |
| Motor | AC |
| Sealing Method | Heating element |
| Power Supply | 230V, 50/60Hz, 1PH |
| Power Consumption | 0.95 kw |
| Layout Dimension | 1005.L x 765.W x 1120.H mm |
