Yard Ramp

project-slider-image
project-slider-image
project-slider-image

Description

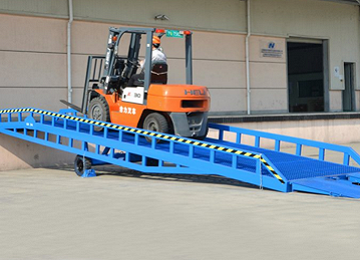

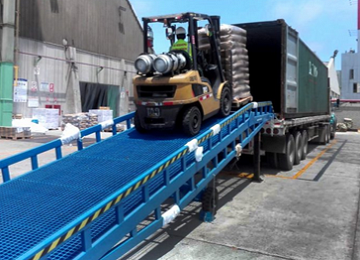

A yard ramp is a ramp that bridges the gap between your warehouse and trucks, creating a level surface for transporting materials. They are also known as movable loading ramps because they allow for the unloading of trucks at nearly any location. Yard ramps are often used in combination with existing loading docks that expand their capacity without having to relocate to a larger warehouse. The central advantage of a yard ramp is productivity. This equipment allows you to set up freight loading operations pretty much anywhere, so you can use more of your facility space to get more jobs done in less time.

Features

  • Anti-skid running surface of ramp
  • Manual handle operation-easy and convenient
  • Safety chains connection with container hooks
  • Solid tires-maintainence free
  • Tire blocker*2pcs-ensure tires are stable
  • 50ton capacity heavy duty leg*2pcs
  • Safety curb/railings to protect accident runoff
  • Tow-bar for easy moving

Specification

    ModelLGD-6
    LGD-8 LGD-10LGD-12
    Load Capacity
    6 Tons
    8 Tons10 Tons12 Tons
    Overall Size
    ≈11.2*2*1.4≈11.2*2*1.4≈11.2*2*1.4≈11.2*2*1.4
    Height
    ≈1.2 M to 1.7M≈1.2 M to 1.7M≈1.2 M to 1.7M≈1.2 M to 1.7M
    Power
    Manual handle for up & down Manual handle for up & down Manual handle for up & down Manual handle for up & down
    Weight
    ≈2200 ≈2300 ≈2400 ≈2600

Brochure

Download Product Brochure
