Double Deep Reach Truck
Description

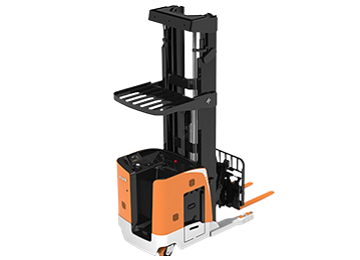

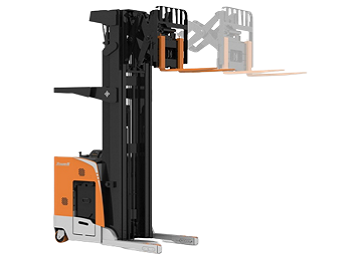

RRE series is double deep reach truck for narrow aisle stacking. The Maximum lifting height can be 10160mm with load of 3200 lbs(1450kg). It's unique reaching structure would help it to reach up to 1080mm and reach the double deep shelves. It can be extended and retracted as fast as pantographs. It is suitable for double-row shelf space access operation and significantly increase storage density. Reduces space needed for aisles. It is your idea choice for high-throughput stock where restricted access is not a problem.
Features
- Safety : Standard with OPS and SAS safety management system,improve the safety level
- Stability :Strong chassis and mast increases durability
- High efficiency and energy-saving : CAN bus main wire and full AC control system, which greatly improves the motor performance and lower the electricity consumption
- High adaptation : Suspension design on driving assembly makes it perfect performance on all kinds of floor
- Easy to maintenance : Half-closed electric unit chamber design and battery side out function make it easy for maintenance work

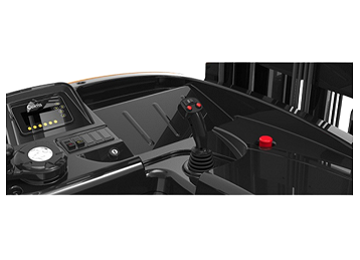

- Comfortable operation : Equipped with EPS function and multifunctional finger joysticks bring you unmatched comfort
Specification
| Product Model | RRE |
| Driving Mode | Electrics |
| Operating Mode | Standing |
| Rated Load (Q) | 1500 KG |
| Height with mast closed (h1) | 3556 mm |
| Lifting Height (h3) | 8150 mm |
| Height with mast extended (h4) | 9068 mm |
| Overall Width (b1) | 1090 mm |
| Fork Dimension (s / e / l) | 40/100/1070 mm |
