Multi Directional Reach Truck
Description

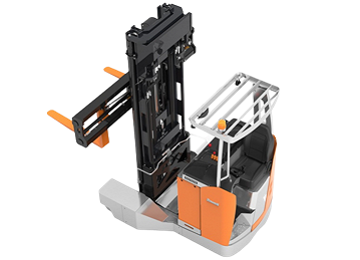

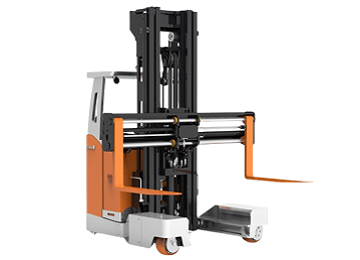

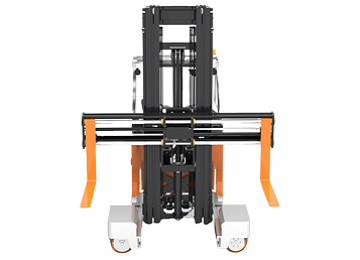

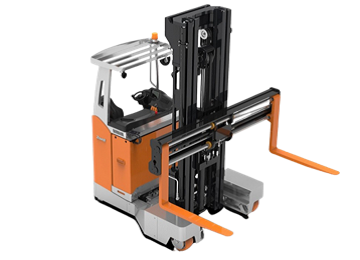

RSEW multi-directional forklift is a material handling equipment used for long material handling. Its unique design covers the advantages of common forklifts and stackers as well as VNA trucks. With three omni-directional wheels, it can drive smoothly in multiple directions such as parallel moving and oblique moving, so as able to maneuver smaller aisles and maximize your warehouse storage safely.
Features
- Four forks + wide fork
- Straight mode - Drive single-wheel steering (the angle of the two front wheels remains unchanged, and the rear drive wheel controls the steering)
- Sidewalk mode - Sideways driving (90° full wheel rotation)
- In-situ rotation mode - 180° U-turn in place
- All-wheel steering mode - all-wheel independent steering
- Minimum right angle steering - Overturn of 90 with the smallest aisle width
Specification
| Product Model | RSEW-225 | RSEW-225S | RSEW-130 | RSEW-130S |
| Driving Mode | Electrics | Electrics | Electrics | Electrics |
| Driving Position | Transverse Seat | Transverse Seat | Transverse Seat | Transverse Seat |
| Load Capacity at Load Center (Q) | 2500 KG | 2500 KG | 3000 KG | 3000 KG |
| Lifting Height | 3000-4500 mm | 4500-8000 mm | 3000-4500 mm | 4500-10000 mm |
| Overall Length (fork included) (l1) | 2444 mm | 2496 mm | 2294 mm | 2346 mm |
| Overall Width (b1) | 1728 mm | 1728 mm | 1728 mm | 1728 mm |
| Fork Size (l / e / s) | 1070/100/45 mm | 1070/100/45 mm | 920/125/45 mm | 920/125/45 mm |
| Fork Width (b5) | 355-880 mm | 355-880 mm | 380-880 mm | 380-880 mm |
