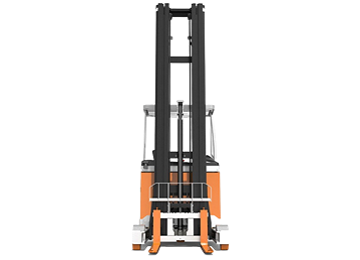

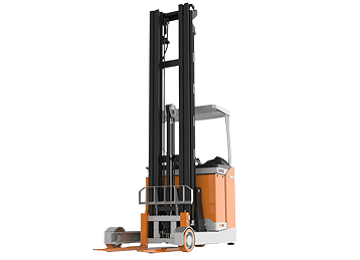

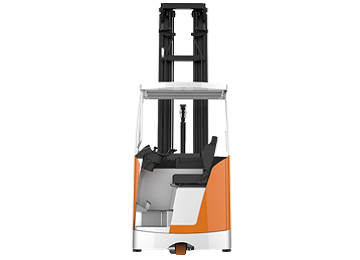

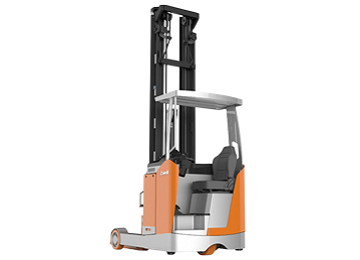

Sit-Down Electric Reach Truck
Description
FRB Electric Reach Truck is 2 ton reach truck with 9m lifting height. It's maximum lifting height is up to 9m. It is good partner for high racking system. It can be used for Food & Beverage, Paper, Automoble, Clothes, Electronic Components, Logisitic industry and Racking system company.
Features
- Wider area for the leg
- Sitting type operation
- Design of low center of gravity
- Lifting height limit
- Turning speed limiting device
- Good lifting ability
- Front moving function
- This reach truck has a small turning radius which is only 1700mm, so that it can move flexibly even in tight warehouse and workshop areas
- The fork can tilt forward and backward for easy loading and unloading of goods and material, thus improving the transporting stability of the reach truck
Specification
| Product Model | FRB-2090 |
| Driving Mode | Electrics |
| Operating Mode | Sitting |
| Rated Load (Q) | 2000 KG |
| Height with mast closed (h1) | 3726 mm |
| Lifting Height (h3) | 9000 mm |
| Height with mast extended (h4) | 9854 mm |
| Fork Dimension (s / e / l) | 50/100/1150 mm |
| Reach Distance (L3) | 590/555 mm |
