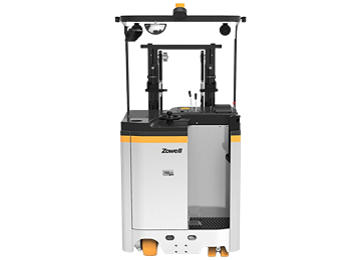

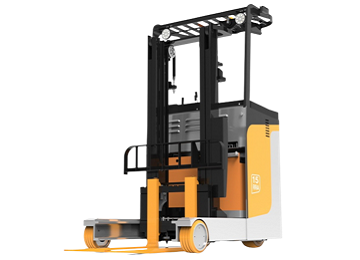

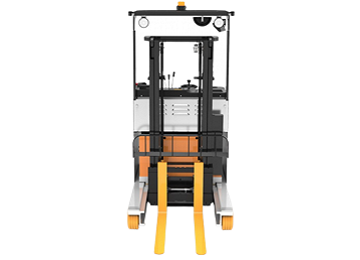

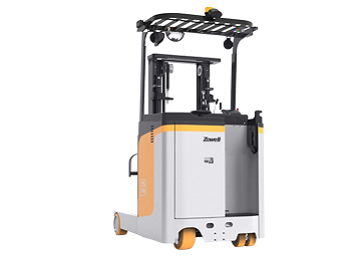

Standing Electric Reach Truck
Description
FRA Series Electric Reach Truck
Features
- AC system
- Battery maintenance and change
- Wider area for the leg
- Comfortable backrest
- Design of low center of gravity
- Lifting height limit
- Turning speed limiting device
- This reach truck can freely lift the heavy goods to the height of 7200mm with ease
- Front moving function
- This reach truck has small turning radius which is only 1.7m, so that it can move flexibly
- The fork can tilt forward and backward for easy loading and unloading of goods and material, thus improving the transporting stability of the reach truck
- Forged fork
Specification
| Product Model | FRA-15 | FRA-18 |
| Driving Mode | Electrics | Electrics |
| Operating Mode | Standing | Standing |
| Rated Load (Q) | 1500 mm | 1800 mm |
| Height with mast closed (h1) | 3080 mm | 3080 mm |
| Lifting Height (h3) | 7200 mm | 7200 mm |
| Height with mast extended (h4) | 8065 mm | 8065 mm |
| Fork Dimension | 100/40/1070 mm | 100/40/1070 mm |
| Fork Outer Width (s / e / l) | 200-760 mm | 200-760 mm |
| Reach Distance (L3) | 590 mm | 590 mm |
