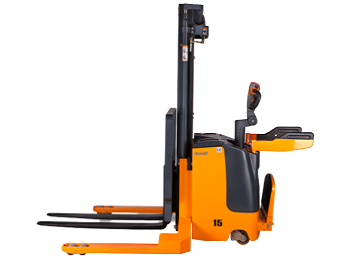

Electric Straddle Stacker
Description
Our XEK electric straddle stacker is especially used for stacking of medium and high intensity in warehouses, manufacturing industries, retail stores and that. Its loading capacity ranges from 1000kg to 2000kg. This kind of stacker can be used independently as well as together with a platform.But the platform is necessary for its long-distance transport.
Features
- Multifunctional meter
- Emergency power-off switch
- Safety protection

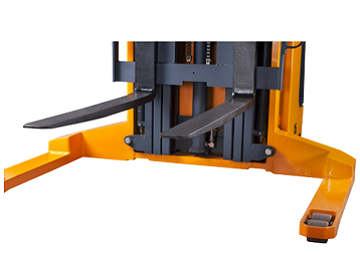

- Forged fork
- Lifting height limit
- Side loading and unloading of storage battery
Specification
| Product Model | XEK-15 | XEK-20 |
| Driving Mode | Electrics | Electrics |
| Operating Mode | Standing | Standing |
| Rated Load (Q) | 1500 KG | 2000 KG |
| Height with mast closed (h1) | 2000 mm | 2055 mm |
| Lifting Height (h3) | 3000 mm | 3000 mm |
| Height with mast extended (h4) | 3957 mm | 3991 mm |
| Total Height (L1) | 2003 mm | 2051 mm |
| Total Width (b1) | 1510 mm | 1510 mm |
| Fork Dimension (s / e / l) | 100/35/1070 mm | 100/40/1070 mm |
| Outer Width of Fork (b3) | 200-800 mm | 200-800 mm |
| Turning Radius (Wa) | 1626 mm | 1682 mm |
