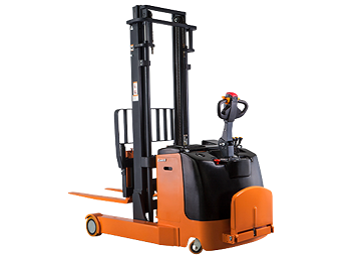

Electric Walk Reach Stacker
Description
XR electric reach stacker is typically designed for stacking of medium and high intensity, which includes pallet transport and stacking in warehouses, manufacturing industries or retail stores. And its loading capacity is from 1500kgs to 2000kgs. It can work independently as well as in connection with a platform. A platform is needed for long-distance transport.
Features
- Front moving function
- The fork can tilt forward and backward for easy loading and unloading of goods and material, thus improving the transporting stability of the reach truck
- This reach truck adopts an original multifunctional handle from Frei, Germany. The operation is comfortable and the functional buttons can realize precise control
- Side loading and unloading of storage battery
- Multipath valve stem control
- Emergency power-off switch: the power can be rapidly cut off in emergencies to ensure safety
- Multifunctional meter can display failure code, electric quantity and some other information. The operators can know the running condition of the truck via the meter
Specification
| Product Model | XR-15 | XR-20 |
| Driving Mode | Electrics | Electrics |
| Operating Mode | Standing | Standing |
| Rated Load (Q) | 1500 KG | 2000 KG |
| Height with mast closed (h1) | 2030 mm | 2030 mm |
| Lifting Height (h3) | 3000 mm | 3000 mm |
| Height with mast extended (h4) | 3940 mm | 3940 mm |
| Fork Dimension (s / e / l) | 100/35/1070 mm | 100/35/1070 mm |
| Reach Distance (L3) | 580 mm | 580 mm |
