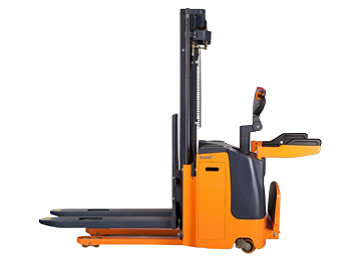

Heavy Duty Electric Stacker
Description
Our standard electric stacker is mainly used for stacking of medium and high intensity, like pallet transport and stack in warehouses,manufacturing industries, retail stores,and so on. lt can be operated alone as well as in combination with a platform. And the platform is necessary for long-distance transport. And the loading capacity of our XE standard electric stacker ranges from 1000kg to 2000kg.
Features

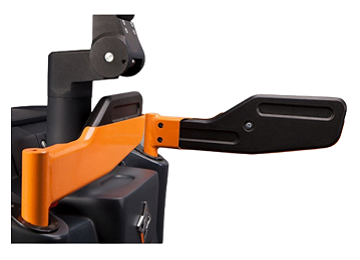

- Multifunctional handle
- Strong power
- Superior gradeability
- Buffered pedal
- Dual balance wheel device
- Emergency power-off switch
Specification
| Product Model | XE-15 | XE-20 |
| Driving Mode | Electrics | Electrics |
| Operating Mode | Pedestrian | Pedestrian |
| Rated Load (Q) | 1500 KG | 2000 KG |
| Height with mast closed (h1) | 2000 mm | 2055 mm |
| Height with mast extended (h4) | 3464 mm | 3520 mm |
| Total Height (L1) | 2043 mm | 2110 mm |
| Total Width (b1) | 850 mm | 942 mm |
| Fork Dimension (s / e / l) | 180/66/1150 mm | 180/66/1150 mm |
| Outer Width of Fork (b3) | 570/580/680 mm | 570/580/680 mm |
